Complete guide: Critical Prime Pen 4.2 – Full Set
A professional wireless pen developed by Critical together with Prime Tattoo Supply, equipped with a Japanese Bishop motor and 4.2 mm stroke — designed for artists who predominantly work with bold lines and color packing. The 'Full Set' variant comes ready to work: machine, two 2000 mAh batteries, dual-port charging station, four start-up cartridges and accessories, plus a manual with a QR code leading to an instructional video. The strong hit of the 4.2 mm stroke makes it recommended for styles such as traditional, neo-traditional, or new school, where thick outlines and saturated colors are essential.
How to use
- Fully charge both batteries using the included dual-port charging station and USB-C cable before the first session.
- Sanitize the machine surface and wrap it with protective barrier film; the large buttons allow voltage adjustment even through the film.
- Install a membrane cartridge suitable for the work — the set includes 5RL, 7RL, 9M and 9CM to start — and, if using the included 34mm disposable grip, attach it now.
- Connect the battery via the magnetic connection; the machine body rotates 360°, so position the display as convenient.
- Adjust the needle projection from the stepless system, according to the technique and the cartridge used.
- Set the voltage from the buttons, within the working range of 4–13 V — lower for delicate work, higher for thick lines and dense fills; the Jumpstart function starts the machine without a foot pedal.
- Check the operation and needle stroke before touching the skin, then work while monitoring the voltage and battery status on the display.
- At the end, safely discard the cartridge and disposable grip, remove the film, disinfect the machine body, and put the batteries to charge.
Tips from us
- Always keep the second battery charged: the magnetic swap takes a few seconds and won't interrupt your session — especially useful for color packing, where higher voltages reduce real autonomy to around 4–5 hours.
- Choose the variant according to style: 4.2 mm has a strong hit for bold lines and dense fills, while the 3.5 variant of the same model has a softer hit, preferred for black and grey and fine shading.
- Keep the included RCA connector as a backup: if you run out of batteries, you can continue with a classic wired power supply.
- The batteries are cross-compatible with Critical V3 and Bishop Power Wand — if you already have equipment from this ecosystem, you can use them interchangeably.
- Scan the QR code in the manual before first use: the official video shows the correct assembly and adjustments.
- The long stroke penetrates decisively, so work with controlled movements and let the machine do the work — don't compensate with pressure.
Warning: The machine body contains the motor and electronics, so it cannot be sterilized in an autoclave: always protect it with a barrier film during work and disinfect it with a surface disinfectant after each client. Cartridges and disposable grip are single-use and must be disposed of in sharps containers. Only work with gloves and sterile, sealed cartridges — any cartridge with damaged packaging must be discarded.
Frequently asked questions
What exactly do I get in the 'Full Set'?▾

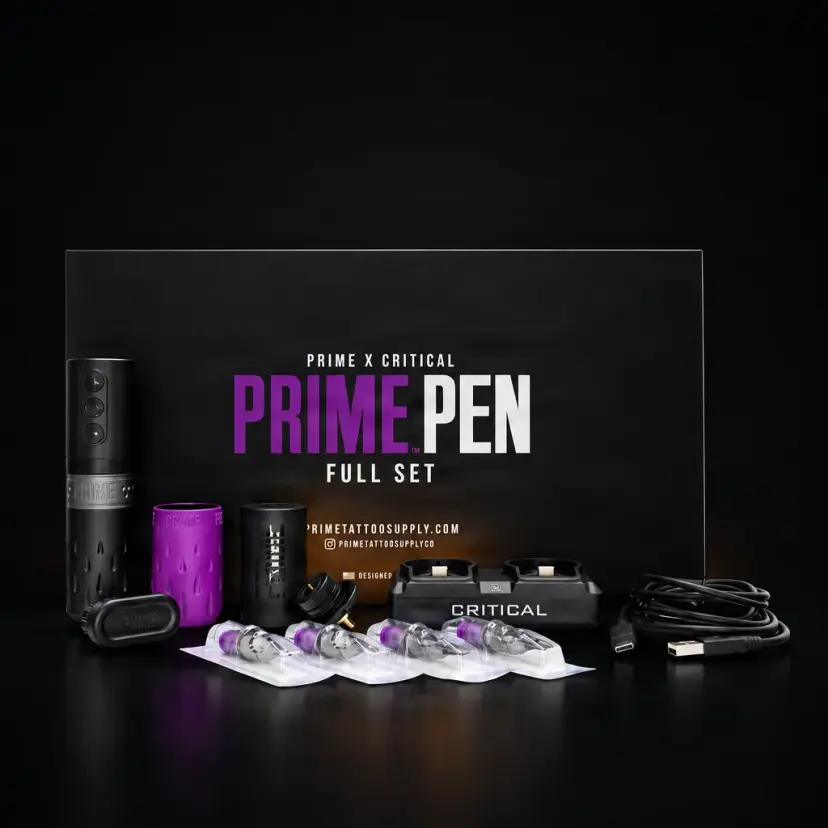

The package includes the machine, 2 batteries, a 2-port charging station, USB-C cable, Prime tool, a 34 mm disposable grip, an RCA connector, 4 Prime cartridges (5RL, 7RL, 9M, 9CM), and the user manual with QR code to a video. Basically you can start working immediately, only needing to restock your cartridge and hygiene supplies.
For which styles is the 4.2 mm stroke suitable?▾
The 4.2 mm stroke delivers a strong hit, which helps with deep and even pigment deposit — ideal for thick outlines and intense color packing, so for styles like traditional, neo-traditional, or new school. It can also be used for shading, but if you predominantly work black and grey with fine shading, the 3.5 variant of the same model has a softer hit, more suitable for that.
What cartridges can I use with it?▾
The machine is compatible with most membrane cartridges available on the market, so you are not tied to a single manufacturer. In the set you already receive 4 Prime cartridges (5RL, 7RL, 9M, 9CM) to cover both lines and fills for your first works.
How long does the battery last and what do I do if it runs out during a session?▾

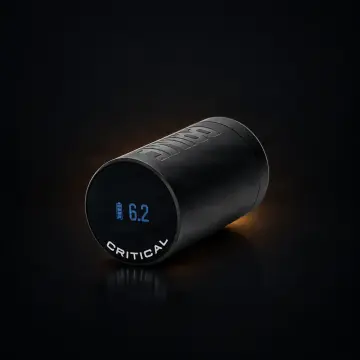

The 2000 mAh battery offers up to 7 hours of autonomy, but at the higher voltages used for color packing you can realistically expect 4–5 hours. The set includes two batteries, and the magnetic connection allows swapping in a few seconds; additionally, the batteries are also compatible with Critical V3 and Bishop Power Wand, and the included RCA connector allows you to continue with a classic power source if needed.
How do I sanitize the machine between clients?▾
Before each client, cover the machine body with protective barrier film — the large buttons can be adjusted even through the film, so you don't lose control. After the session, remove the film, cartridge, and disposable grip, then wipe the machine with a surface disinfectant. Never put the machine body or batteries in an autoclave and do not submerge them in liquids.
Does it have a warranty?▾
Yes, the product has a 1-year warranty from Critical Tattoo for manufacturing defects. Keep proof of purchase and use the machine according to the manual — full instructions are also available in the video accessible via the QR code in the manual.
Product description

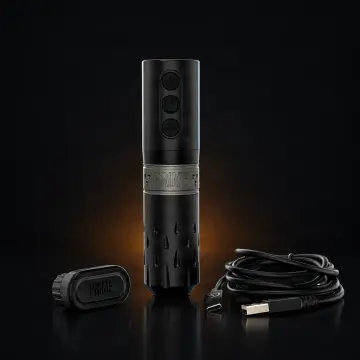

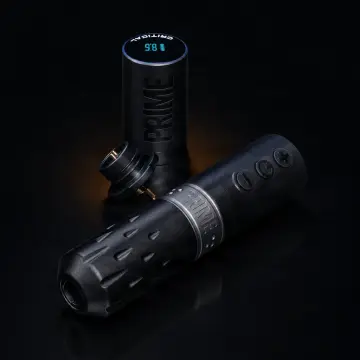

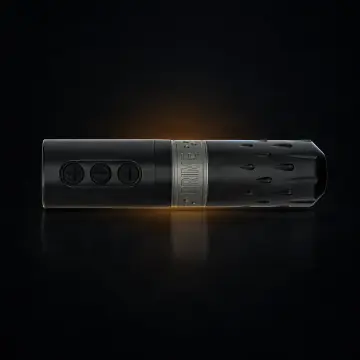

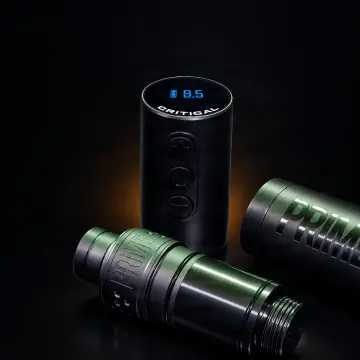

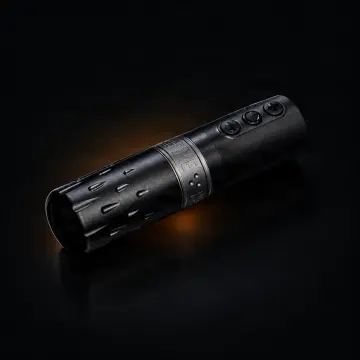

Explore the power of the wireless tattoo machine Critical x Prime Pen equipped with a Japanese Bishop motor. With a 4.2 mm stroke, it excels in every technique, from lining to shading. A wireless tattoo machine you can always rely on – that's the Critical x Prime Pen. Large, intuitive buttons allow you to adjust voltage easily, even when the machine is wrapped in protective film. The display shows only the operating voltage and battery status – everything you need for work. The adjustable, stepless needle protrusion allows for precise machine settings tailored to your technique and work preferences. The magnetic battery connection enables easy battery replacement and allows the machine body to rotate 360 degrees, adjusting the display position for maximum work comfort. The Critical x PRIME Pen is equipped with a precise Japanese Bishop motor, enabling operation within the 4-13 V voltage range. PACKAGE INCLUDES : 1 x Machine 2 x Battery 1 x Charging station (with 2 ports) 1 x USB C cable 1 x Prime tool 1 x Disposable 34mm grip 1 x RCA connector 4 x Cartridge Prime 5RL / 7RL / 9M / 9 CM User manual with QR code for the video TECHNICAL SPECIFICATIONS: Stroke: 4,2 mm Voltage range: 4-13 V Battery: 2000mAh
The Critical Prime Pen 4.2 Full Set is a professional wireless tattoo machine developed in partnership by Prime Tattoo Supply and Critical Tattoo, specifically designed for artists who work predominantly with bold lines and color packing. The complete set contains the Prime Pen with 4.2mm stroke, a 2000mAh PRIME battery with up to 7 hours of continuous working autonomy, charger, and complete accessories for immediate use. The 4.2mm stroke delivers a powerful, decisive hit ensuring deep, uniform pigment penetration, ideal for thick outlines and dense color fills. The precision Japanese Bishop motor provides consistent performance across the entire voltage range of 4.5V to 13V, with minimal vibrations and low noise level. The dimensions identical to the 3.5 variant of 32mm diameter and 140mm length at a weight of 180 grams ensure a familiar ergonomic balance for artists who use both variants. The magnetic battery connection and cross-compatibility with Critical V3 and Bishop Power Wand batteries offer maximum flexibility within the equipment ecosystem. The Jumpstart function allows instant start without a pedal, and compatibility with most membrane cartridges available on the market guarantees freedom of consumable choice. The 1-year warranty from Critical Tattoo covers manufacturing defects. The robust design of the Prime Pen 4.2 reflects the engineering philosophy of the Prime x Critical collaboration, with every component optimized for long-term reliability and consistent performance. This machine is built to withstand intensive daily use in the demanding professional environment of top studios.
Frequently Asked Questions What techniques is the Prime Pen 4.2 recommended for? The Prime Pen 4.2 is specifically designed for bold, thick lines, intense color packing, and dense fills. The 4.2mm stroke delivers a powerful hit ensuring deep pigment penetration, ideal for traditional, neo-traditional, new school styles, and any work requiring saturated colors and defined outlines. What is the difference between Prime Pen 3.5 and 4.2? The main difference lies in stroke and motor behavior. Prime Pen 3.5 has a 3.5mm stroke with a softer hit, ideal for black and grey and shading. Prime Pen 4.2 has a 4.2mm stroke with a more powerful hit, oriented toward bold lines and color packing. Dimensions, weight, and battery compatibility are identical between the two variants. What does the Prime Pen 4.2 complete set include? The Critical Prime Pen 4.2 complete set includes the Prime Pen machine with 4.2mm stroke, the 2000mAh PRIME battery with up to 7 hours of autonomy, charger, and all necessary accessories. The set provides everything needed to start working immediately, requiring only needle cartridges to complete the equipment. How long does the Prime Pen 4.2 battery last? The 2000mAh PRIME battery provides up to 7 hours of runtime from a full charge. At the 4.2mm stroke and higher voltages needed for color packing, actual runtime may be 4-5 hours. The battery swaps magnetically in seconds, and compatibility with Critical V3 and Bishop batteries ensures uninterrupted continuity. What motor does the Critical Prime Pen 4.2 have? The Critical Prime Pen 4.2 uses a precision Japanese Bishop motor designed to deliver consistent, powerful performance across the entire voltage range of 4.5V to 13V. The motor provides the torque needed for intense color packing without losing speed under load, maintaining a consistent hit throughout the entire session. Can I use the Prime Pen 4.2 for shading as well? Although the Prime Pen 4.2 is optimized for bold lines and color packing, it can also be used for more intense shading at reduced voltages. However, for delicate shading and fine black and grey work, the 3.5 variant is more suitable due to its softer hit. Many artists choose to have both variants to cover all techniques. Is the Prime Pen 4.2 compatible with all cartridges? Yes, the Critical Prime Pen 4.2 is compatible with most membrane cartridge brands available on the market, including Kwadron, Cheyenne, Bishop, Peak, and others. This universal compatibility allows the artist to choose the cartridges that best suit their working style without brand restrictions. What does the Jumpstart function on the Prime Pen 4.2 mean? The Jumpstart function allows instant on/off of the machine with a simple press of the dedicated button, without requiring a foot pedal. The motor starts immediately at the preset voltage, allowing the artist to begin work without any delay. This function offers complete freedom of movement and simplifies workflow. How much does the Prime Pen 4.2 weigh? The Critical Prime Pen 4.2 weighs 180 grams, identical to the 3.5 variant, with compact dimensions of 32mm diameter and 140mm length. This optimized weight and ergonomic balance allow long color packing sessions without excessive hand fatigue, maintaining precision and control throughout the entire session. What warranty does the Critical Prime Pen 4.2 have? The Critical Prime Pen 4.2 comes with a 1-year warranty from Critical Tattoo, covering manufacturing defects and functional components. Critical Tattoo is a benchmark American brand in the tattoo equipment industry, providing complete technical support and after-sales service for all products in its portfolio.
