Complete guide: Stigma Beast V2 Frame with 4.5 Watt motor
Beast V2 is a hybrid rotary tattoo machine from Stigma, designed for artists who want a strong, direct hit. It works with both traditional pre-soldered needles and Stigma cartridge modules, so it doesn't force you to limit yourself to a single type of consumable. The body weighs only 37 grams and has a modular construction, with a detachable motor — easy to assemble, disassemble, and clean. It is a choice for experienced artists seeking raw power and consistency with every pass, not fine hardness adjustments.
How to use
- Mount the MotorPlug motor onto the machine body and make sure it is securely attached — the motor is detachable and changes quickly.
- Check the eccentric: from the factory, the medium one is pre-installed, with a stroke of 3.5-4.5 mm, suitable for most techniques. For fine lines, use the short eccentric (2.8-3.6 mm), for bold lines the long one (4.3-5.0 mm), and the adjustable eccentric (2.5-6.0 mm) covers the entire range.
- Mount the consumable appropriate for the technique: either a traditional pre-soldered needle or a Stigma cartridge module.
- Cover the machine and cable with disposable barriers (machine bag and clip cord cover) before any contact with the work area.
- Connect the machine to a compatible power supply and start at a low voltage, then gradually increase until you achieve the desired performance.
- Test the hit and stroke on practice skin before the session — Beast V2 delivers a hard hit without hardness adjustment, so you calibrate your feel through voltage and the choice of eccentric.
- At the end, disassemble the machine modularly, detach the motor, and clean each reusable component before the next client.
Tips from us
- Beast V2 has no hit hardness adjustment — you control the 'perceived force' through the voltage on the power supply and the chosen eccentric, not from the machine.
- For everyday work, stick with the medium eccentric; switch only when you really need a shorter or longer stroke.
- The motor is detachable and interchangeable — if you want more power, you can switch to a 5W, 6W, or 10W motor from the Stigma range, keeping the same body.
- The 37-gram body is a real advantage during long sessions; if you're coming from a heavy machine, give yourself a few sessions to get used to the balance.
- The sliding piston is self-lubricating — do not add oil or any other lubricant; it's not necessary and can do more harm than good.
Warning: The machine comes into contact with skin and fluids, so hygiene is mandatory. Always use disposable barriers for the machine and cable, plus sterile, single-use needles or cartridges — a new set for each client. Between clients, disassemble the machine modularly, detach the motor, and clean/disinfect reusable components according to your clinic protocol. Do not lubricate the self-lubricating piston. Being a machine with a hard hit, without hardness adjustment, it is intended for professional use by experienced artists.
Frequently asked questions
How much does the body of the Beast V2 weigh?▾
The body weighs only 37 grams, making it one of the lightest rotary machines on the market. The total weight with the MotorPlug motor attached is slightly higher, but it remains very light — a clear advantage during long sessions.
Can I use both traditional needles and cartridges?▾
Yes, Beast V2 is a hybrid machine: it works with both traditional pre-soldered needles and Stigma cartridge modules. It's ideal if you work with both types of consumables or if you're gradually transitioning from needles to cartridges.
What motor does it include and can I upgrade?▾
This version comes with a 4.5W MotorPlug motor, which is detachable and interchangeable. If you want more power, you can upgrade to a 5W, 6W, or 10W motor from the Stigma range, using the same machine body.
Which eccentric is pre-installed and what stroke options do I have?▾
It comes pre-installed from the factory with the medium eccentric, featuring a stroke of 3.5-4.5 mm, versatile for lining and shading. Three other options are available: short (2.8-3.6 mm) for fine lines, long (4.3-5.0 mm) for bold lines, and an adjustable eccentric (2.5-6.0 mm) covering the full range of techniques.
How do I clean it and how much maintenance does it require?▾
Thanks to the modular design, the machine disassembles quickly: the motor detaches from the body, and you can clean each component separately. The piston moves in a self-lubricating sleeve, so no lubrication is needed. Essentially, mechanical maintenance is minimal — the focus remains on proper hygiene between clients.
Is it suitable for beginners?▾
Beast V2 delivers a hard, consistent hit, without the ability to adjust hardness. For this reason, it's recommended more for experienced artists who know exactly what impact force they need. A beginner can work with it, but will need time to get used to the strong hit.
Product description

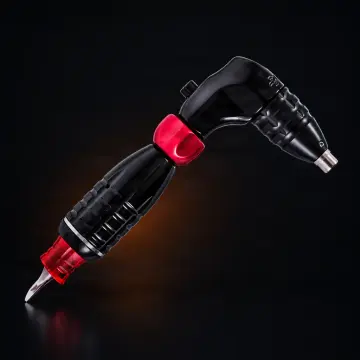

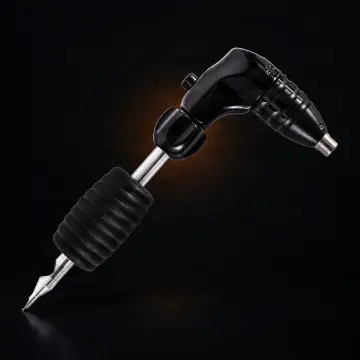

The Beast V2 is the successor to The Beast. The Beast V2 is a hybrid machine accommodating both standard needles and Stigma cartridges. The Stigma cartridge system is unique and completely different and safer than any other cartridge system on the market. The Beast V2 is a solid hitting machine with no give. This machine is for artists who like a solid hit yet also want to be able to change motors and stroke excenters. For reference, the Beast V2 Body is also pictured here with the 6W Motor Plug and the Stigma Aluminium Click Grip in black / red. Additionally it is also pictured with a standard needle and tube, to show how it can work with both, being hybrid. Key Features Works with standard needles and Stigmas new Advanced, dual sealed Cartridge System Detachable motor4.5 Watt motor Choose between Stroke Excenters Solid hit Easy set up Light Weight - Body weighs just 37 grams Maintenance Free! - The glide piston on the Beast v2 moves into a self-lubricating sleeve so there is no lubricating required! The product warranty is 1 year DIRECTLY FROM THE MANUFACTURER!
The Stigma Beast V2 with 4.5 Watt motor is a hybrid rotary tattoo machine designed for artists who prefer a powerful, direct hit with no compromises in penetration force. With a body weighing only 37 grams, the Beast V2 is one of the lightest rotary machines in the world, and its modular design allows quick assembly and disassembly for cleaning and maintenance. The machine works with both traditional pre-soldered needles and cartridge modules, providing complete versatility in consumable choice. The 4.5W Motor Plug is detachable and interchangeable, allowing upgrade to 5W, 6W, or 10W motors depending on the artist's preferences and work requirements. The standard pre-installed stroke is 3.5-4.5mm with the medium eccentric, but four eccentric options are available: short 2.8-3.6mm, medium 3.5-4.5mm, long 4.3-5.0mm, and adjustable 2.5-6.0mm, covering any tattooing technique. The hard hit without hardness adjustment makes the Beast V2 ideal for artists who want raw power and consistency on every pass. The robust, reliable construction combined with zero-maintenance motor makes the Beast V2 a dependable machine for intensive professional use. It is the perfect choice for artists who appreciate simplicity and force in a compact machine. Stigma Rotary has created a machine that honors the powerful hit tradition of coil machines in a modern, efficient rotary format. The Beast V2 is intended for artists who refuse to choose between raw power and the convenience of a modular, easy-to-maintain rotary machine.
Frequently Asked Questions How much does the Stigma Beast V2 body weigh? The Stigma Beast V2 machine body weighs only 37 grams, making it one of the lightest rotary machines available on the market. This minimal weight is due to the compact modular construction and high-quality materials. The total weight with the Motor Plug motor installed is slightly higher but remains extremely light. What eccentrics are available for the Beast V2? Four eccentric options are available for the Stigma Beast V2: short with 2.8-3.6mm stroke for fine lines, medium with 3.5-4.5mm stroke pre-installed as standard, long with 4.3-5.0mm stroke for bold lines, and adjustable eccentric with 2.5-6.0mm stroke covering the entire range of techniques in a single accessory. Can I use both traditional needles and cartridges with the Beast V2? Yes, the Stigma Beast V2 is a hybrid machine that works with both traditional pre-soldered needles and modern cartridge modules. This versatility makes it ideal for artists transitioning from traditional needles to cartridges or who prefer to use both types depending on their technique and working style. What motors are compatible with the Beast V2? The Stigma Beast V2 comes standard with the 4.5W Motor Plug, but supports upgrade to 5W, 6W, and 10W motors from the Stigma range. The motor is detachable and interchangeable, allowing the artist to choose the optimal power for their working style. The 4.5W motor is ideal for most techniques, providing a good balance between power and control. What type of hit does the Stigma Beast V2 provide? The Stigma Beast V2 delivers a hard, powerful hit with no hardness adjustment option. This characteristic makes it ideal for artists who prefer raw power and consistency on every pass, similar to the force of traditional coil machines. It is a machine for experienced artists who know exactly what impact force they need. How is the Stigma Beast V2 cleaned? Thanks to its modular design, the Stigma Beast V2 disassembles quickly and easily for complete cleaning. The motor detaches from the body, allowing individual cleaning of each component. This feature is essential for maintaining hygiene and optimal machine performance long-term. What stroke comes pre-installed on the Beast V2? The Stigma Beast V2 comes with the medium eccentric pre-installed providing a 3.5-4.5mm stroke, suitable for most tattooing techniques. This medium stroke is versatile, working well for both lines and shading and color packing. Additional eccentrics can be purchased separately to customize the machine. Does the Stigma Beast V2 motor require maintenance? No, the Stigma Beast V2's Motor Plug motor requires no maintenance or manual lubrication. Its design is conceived for long-term maintenance-free operation, eliminating the artist's concern about motor servicing. This simplicity is one of the most appreciated characteristics of the Beast series. What tattoo styles is the Beast V2 ideal for? With its hard hit and multiple stroke options, the Beast V2 is ideal for traditional, neo-traditional, Japanese, tribal, blackwork, and any style requiring powerful, consistent penetration. With the adjustable eccentric, the machine can also be adapted for more delicate styles like fine line and black and grey, though its excellence lies in power. Why is the Beast V2 called a hybrid machine? The Beast V2 is called hybrid because it works with two types of consumables: traditional pre-soldered needles and cartridge modules. This duality gives the artist the freedom to choose the preferred needle type for each job, without needing to invest in separate machines for each needle system.
