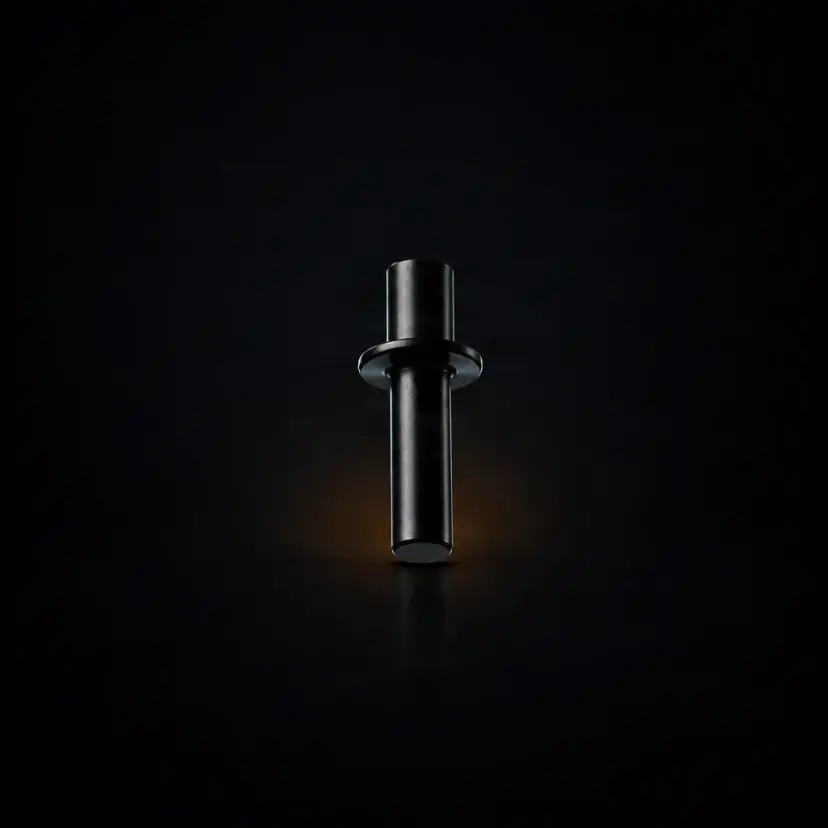

Needlebar pin No. 06 is the original connecting pin in Inkmachines Scorpion rotary machines — the part that transmits motion from the drive mechanism to the needle bar. Essentially, it is the link between the motor and the working needle: without it, the motor spins but the needle stays still. It is aimed at artists who own a Scorpion machine and want to keep it precise, either as a wear replacement part or as a spare for preventive maintenance.
What is the role of the needlebar pin in the Scorpion machine?▾
It is the pin that connects the needle bar to the swash plate assembly. The rotary motor spins the swash plate, which converts rotation into linear (up-down) motion, and the pin transmits this motion to the needle bar and further to the needle. It is literally the link between motor power and needle motion.
How can I tell if the pin is worn?▾
Typical signs: visible or palpable lateral play in the needle bar, irregular needle vibration even at constant speed, inconsistent penetration depth without an obvious cause, and sometimes a metallic clicking sound each cycle. The same symptoms can indicate wear in the swash assembly, so check both components.
Which machine is it compatible with?▾
Part No. 06 is listed for Inkmachines Scorpion X1. For other models (e.g., Scorpion X2 or other Inkmachines machines), do not assume interchangeability — the internal architecture may differ. Always check your model's parts catalog on the Inkmachines website before ordering.
How often should it be replaced?▾
It depends on usage intensity. For a tattoo artist working daily, inspection every 6-12 months and preventive replacement every 1-2 years are reasonable benchmarks. Those who frequently use large needle configurations (e.g., magnums) wear the pin faster due to higher lateral forces.
How do I maintain the machine to make the pin last longer?▾
Keep the machine and work area clean, inspect the pin and swash assembly at every service, avoid forcing assembly, and use only original parts. Maintaining the clearance of approximately 0.5 mm during assembly and correct tightening reduce premature wear.
Why choose the original part over a generic one?▾
The pin withstands cyclic shear and compression loads at high speeds (up to approximately 130 hits per second). The original part is made of high-strength, heat-treated steel with calibrated tolerances for a play-free fit. Inferior materials fail faster and increase the risk of accelerated wear or breakage.
