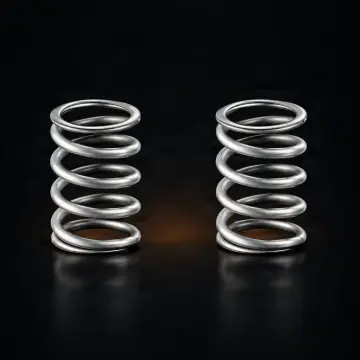

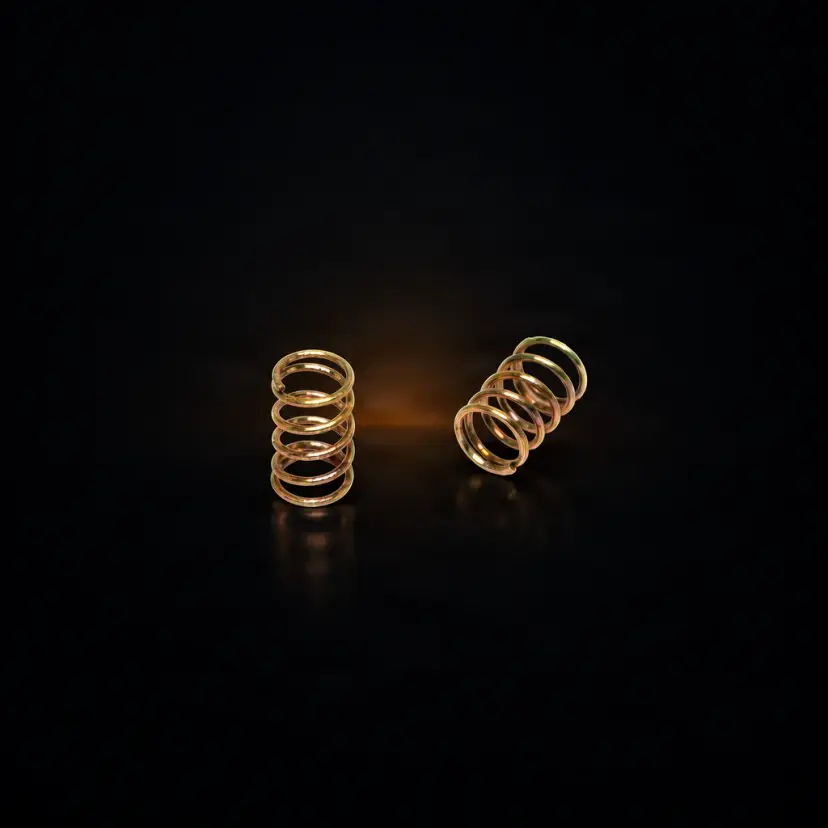

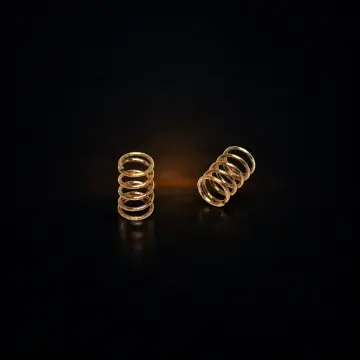

Ball springs are micro-mechanical components inside the adjustment mechanism of the Ink Machines Scorpion X1 tattoo machine. Their role is to press the detent ball into its channel, generating the resistance and 'clicks' you feel when turning the adjustment knob. They are supplied in a set of 2 pieces and are a spare part that every artist with a Scorpion X1 should have on hand for clean service and precise adjustment.
What are these springs and what is their role?▾
They are small springs made from heat-treated spring steel wire, which are part of the detent (adjustment) mechanism of the Scorpion X1 machine. They press the ball into the detent channel and create the palpable resistance—the 'clicks'—that you feel when turning the adjustment knob. Without functional springs, the adjustment becomes loose and can change accidentally during work.
How do I know they need to be replaced?▾
Classic signs are clicks that become weaker or disappear completely when turning the knob, plus an adjustment that 'drifts' by itself during operation. On visual inspection, a worn spring appears permanently compressed or deformed compared to a new one.
Why change both at the same time if only one seems worn?▾
The mechanism uses both springs, and a new spring next to an old one gives different tensions and uneven clicks. The set of 2 is designed specifically for simultaneous replacement so the adjustment remains uniform.
Are they compatible with the Scorpion X2 as well?▾
Product data confirms compatibility only with the Scorpion X1. On the X2, it might work if the detent mechanism uses the same spring dimensions, but this is not guaranteed by Ink Machines—check the X2 model specifications before ordering.
What other parts go together with them?▾
The springs work together with the detent balls (no. 130 of 3 mm or no. 131 of 2 mm), the ball retaining ring (no. 127), and the adjustment knob (no. 128). If you're doing a major service, it makes sense to check these parts too, not just the springs.
How should I store and maintain them to ensure longevity?▾
Keep spare sets in their original packaging, in a dry place at room temperature, without placing heavy objects on top (do not compress them in storage). Being tiny, use a small labeled container to avoid losing or mixing them with other parts. When installing, always work on a clean, dry mechanism.
