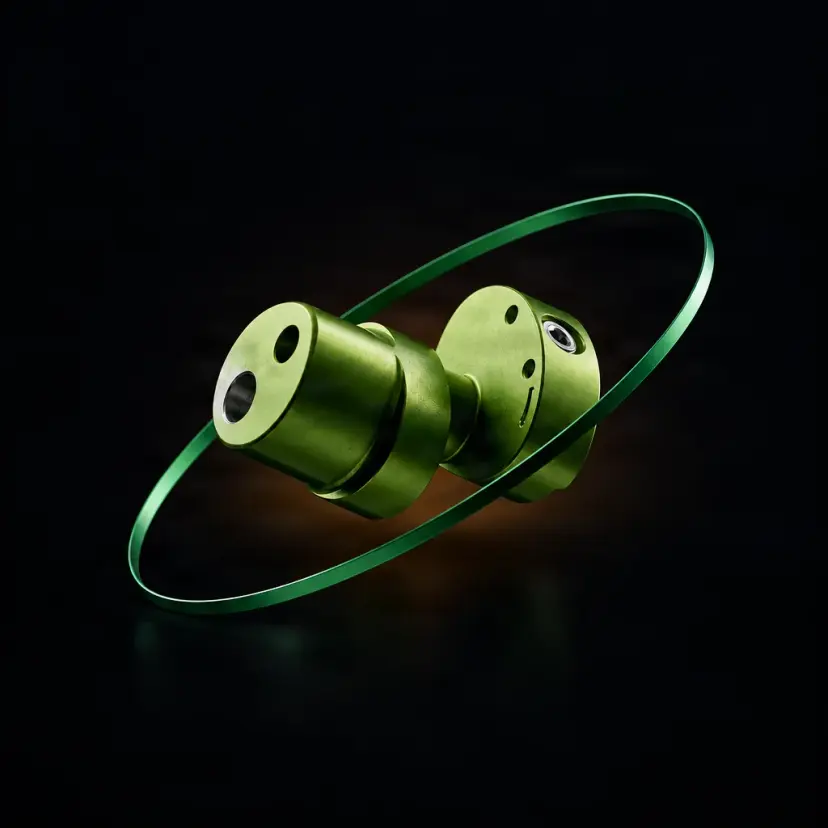

Inkmachines nr. 82 - Cam 3mm stroke Medium (Green) - 1pcs
Ink MachinesSpecifications
- Brand
- Ink Machines
- Packaging
- 1 buc
- Stroke
- 3mm
- Color
- Green
- Compatibility
- Stingray, Stingray X2
- Profile
- Medium
- Material
- Original InkMachines
Ghiduri utile:Piese de schimb Ink Machines — Dragonfly, Stingray, Scorpion, Cobra: ghidInkMachines — mașini suedeze și piese de schimb (Dragonfly, Scorpion, Stingray, Cobra)Întreținerea mașinii de tatuat: piesele de schimb esențiale
Presentation video
Guide & full description
Complete guide: Inkmachines nr. 82 - Cam 3mm stroke Medium (Green) - 1pcs
The cam is the part that converts the rotational motion of the motor in an InkMachines rotary machine into the linear up-and-down motion of the needle. This variant has a 3mm stroke and Medium profile, marked in green in the InkMachines color code (part no. 82), and its role is to give the needle an intermediate strike — more controlled than long-stroke variants, but firmer than delicate ones. It is intended for artists working on InkMachines machines who want to adjust the needle behavior according to technique and skin area. Sold individually (1 piece), as a replacement part, not as a consumable.
How to use
- First, check compatibility with your machine. According to the product info, the cam is recommended for Stingray and Stingray X2, and the product is also listed under the Dragonfly category — therefore, confirm the fit with your exact model before installation.
- Prepare your tools. The manufacturer recommends the Precision tool set for changing the cam; the description also includes an official video tutorial that is worth watching before disassembling anything.
- Stop and disassemble the machine according to the manufacturer's instructions, then remove the old cam from the assembly.
- Prepare the bearings. The cam is sold individually, without bearings: transfer them from the previous cam or separately install cam bearings (part no. 67) and bearing washers (part no. 68), which are the same across the entire range.
- Mount the green 3mm cam on the standardized shaft of the InkMachines system, with the bearings and washers in their proper places.
- Lubricate the bearings according to the manufacturer's recommendations, so the system runs smoothly and without premature wear.
- Optionally, fine-tune the behavior with the spring stop screw (part no. 77), which adjusts the internal spring preload independently of the cam.
- Test the machine on practice skin before working on a client, to verify that the needle moves steadily and the stroke is as desired.
Tips from us
- Remember the color code: green = 3mm Medium. You can quickly identify the installed cam by color, without disassembling components.
- Choose this 3mm Medium stroke when 3.5mm Standard is too aggressive but the very short variants are too delicate — it is useful for intermediate shading, fine lining with small needles, and work on thinner skin (neck, hands, ribs).
- If you work with varied techniques, keep the other cams in the range (no. 80, 81, 83, 84) nearby to cover from bold lining to delicate shading.
- The bearings and bearing washers typically wear out before the cam; check and lubricate them periodically for a good lifespan of the part.
- You can fine-tune the stroke of any cam via the spring stop screw (no. 77), obtaining multiple configurations from a single part.
Frequently asked questions
What difference does the 3mm stroke make compared to a longer stroke?▾
Stroke is the distance the needle travels in each cycle. A longer stroke means a firmer strike and deeper penetration, suitable for bold lining and color packing on thick skin; a shorter stroke gives a gentler, more controlled strike, good for shading and fine work. The 3mm Medium variant sits in the middle: good control for intermediate shading and fine lining, but with enough power to deposit ink efficiently.
Which machines is this cam compatible with?▾
It is part of the InkMachines interchangeable cam system, mounted on the same standardized shaft as the other variants in the range. According to the product info, it is recommended for Stingray and Stingray X2, and the product is also listed under the Dragonfly category. Since the data is not perfectly unambiguous on this point, check the fit with your exact model before purchase.
Does the cam come with bearings included?▾
No. It is sold individually (1 piece), without bearings. Cam bearings (part no. 67) and bearing washers (part no. 68) are purchased separately or transferred from the previous cam — they are the same for the entire InkMachines range.
What do I need to change the cam?▾
The manufacturer recommends the Precision tool set for changing the cam and provides an official video tutorial (link in the product description). You also need the corresponding bearings and washers (no. 67 and 68) if you do not transfer them from the old cam.
How do I maintain the cam to make it last?▾
The cam itself is a durable part; the bearings and bearing washers usually wear out first. Lubricate the bearings according to the manufacturer's recommendations, keep internal parts clean, and protect the machine with barriers during work. With proper maintenance, the part has a good lifespan.
How do I choose between the green cam and the other colors?▾
In the InkMachines color code from the description: green = 3mm Medium (intermediate balance), black = 3.5mm Standard (firmer strike), blue = 3.5mm Smooth (long stroke, gentler contact), red = 2.6mm Short Smooth (most delicate), plus the 4mm Steel Cam variant for maximum stroke. Choose green if you want a versatile piece for intermediate shading and fine lining; for thick lines with large needles, longer stroke variants are more suitable.
