X2 charging station for 2 Scorpion batteries
Ink MachinesSpecifications
- Brand
- Ink Machines
- Compatibility
- TPS-500 X2
- Weight
- 90 g
- Dimensions
- 100x60x37mm
- Quantity
- 2 batteries simultaneously
- Battery life
- 6 hours
- Charge cycles
- 500
- Connection
- BLE radio
Ghiduri utile:Cum alegi mașina de tatuat — ghid complet pentru 2026Rotativă vs bobină vs pen — comparație completăMașină de tatuat wireless vs cu cablu — ce ți se potrivește
Guide & full description
Complete guide: X2 charging station for 2 Scorpion batteries

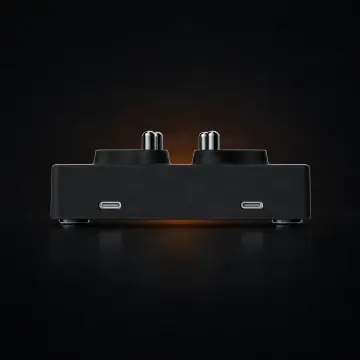

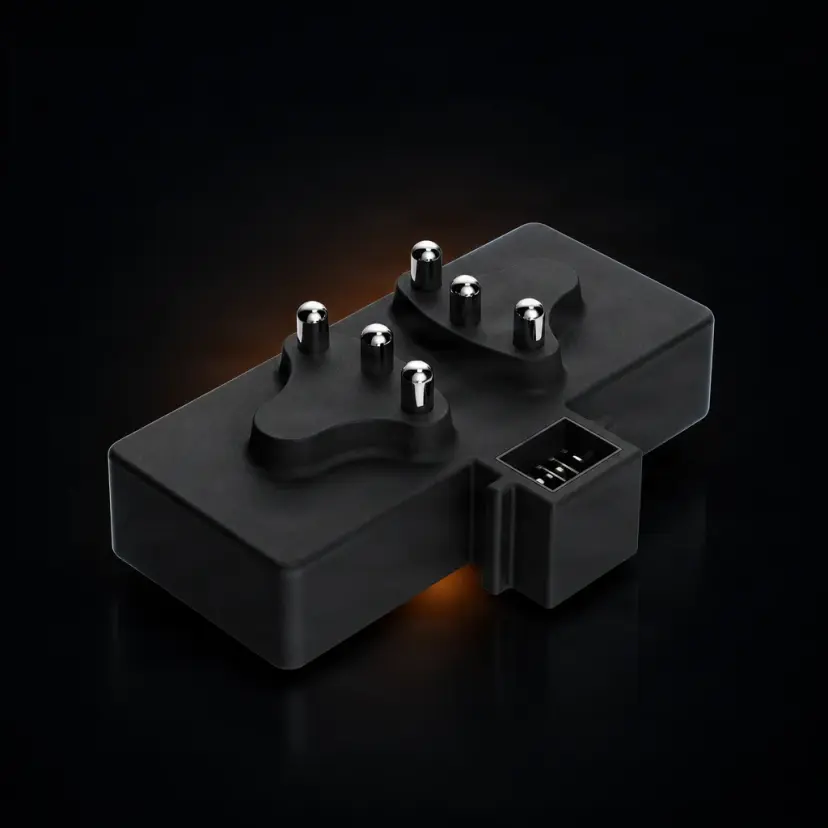

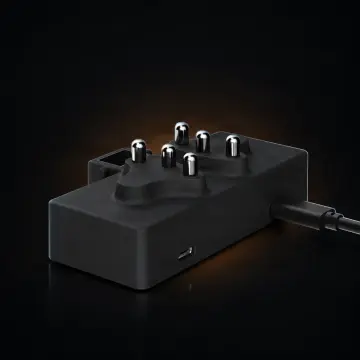

The InkMachines X2 charging station is the dedicated module for simultaneously charging two Powerpack batteries for the Scorpion X2 tattoo machine, integrated into the modular TPS-500 X2 system. It is primarily aimed at studios with multiple Scorpion X2 machines in rotation or artists who work long sessions and have a constant need for charged batteries. Important to note: the station does not work standalone, but connects to the main TPS-500 X2 unit, and through the modular design, multiple stations can be added to scale the simultaneous charging capacity.
How to use
- Check before purchase that you already have the main TPS-500 X2 unit — the station is fully compatible only with this power supply model.
- Connect the charging module to the main TPS-500 X2 unit, following the modular coupling system of the ecosystem.
- Insert the two Powerpack batteries for the Scorpion into the charging slots of the station.
- Leave the batteries to charge — communication between the module and the main unit is done via BLE radio with a long-range antenna, so no additional data cables are needed.
- If you work in a studio with multiple Scorpion X2 machines, you can add multiple charging stations to the same TPS-500 X2 unit, up to 5 units simultaneously, for a constant reserve of ready batteries.
- Rotate the batteries throughout the day: remove the charged ones and put the depleted ones to recharge, for continuous flow during long sessions.
- If you use the station with an old TPS-500 power supply (not X2), note that the 2 onboard USB-C ports of the power supply will be disabled.
Tips from us
- Keep the Powerpack batteries at room temperature, away from excessive humidity, to extend their lifespan.
- Avoid fully discharging the batteries — Li-Ion cells generally have a longer lifespan if they do not constantly reach 0%.
- If the studio has a high workload, consider multiple stations connected to the same TPS-500 X2 unit, so you don't run out of charged batteries during the day.
- Do not confuse this station with the one dedicated to Cobra batteries — the two battery systems are not interchangeable.
- Remember that the station does not come with batteries included — Powerpack X2 batteries for the Scorpion are purchased separately or come included when purchasing the Scorpion X2 machine.
Frequently asked questions
How many batteries can be charged simultaneously with a single station?▾
A single InkMachines X2 charging station charges 2 Powerpack batteries for the Scorpion simultaneously. If you need more capacity, you can connect multiple stations to the same TPS-500 X2 unit, up to 5 units at once.
Is it also compatible with Cobra batteries?▾
No. This station is exclusively compatible with Powerpack X2 batteries for the Scorpion machine. For Cobra batteries, there is a separate, dedicated charging station.
Do I absolutely need the TPS-500 X2 unit?▾
Yes, the station is a module that connects to the main TPS-500 X2 unit and does not work independently. It can also be used with an old TPS-500 power supply, but in that case, the 2 onboard USB-C ports of the power supply will be disabled.
Does it come with batteries included?▾
No, the charging station does not include batteries. Powerpack X2 batteries for the Scorpion are purchased separately or are included when purchasing the Scorpion X2 machine.
How does the station communicate with the main unit?▾
Communication between the charging module and the TPS-500 X2 unit is done via BLE radio with a long-range antenna, for reliability in a studio environment.
How do I take care of the batteries to make them last longer?▾
Store them at room temperature, away from excessive humidity, and avoid fully discharging them. Powerpack batteries for the Scorpion offer approximately 6 hours of autonomy and support about 500 charge cycles over their lifespan.
