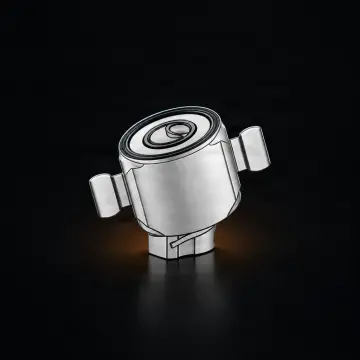

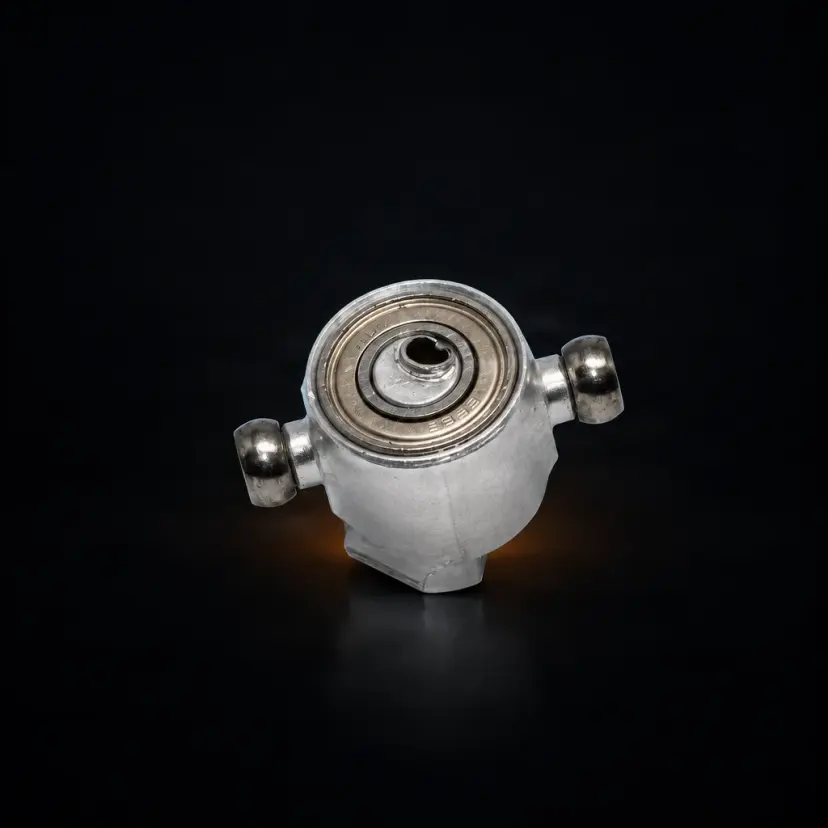

Inkmachines nr. 118 - Swash Assy - 1pcs

Ink Machines

Product code: 376692

217,00 Lei

Fast delivery

Delivery 24-48h

14-day returnsWarrantyDelivery 24-48h

💵 Cash on delivery🔒 Secure order

Specifications

Brand: Ink Machines
Packaging: 1 buc
Stroke: 3.7mm
Compatibility: Scorpion X1
Material: High precision
Format: Swash plate assembly

Useful guides:Piese de schimb Ink Machines — Dragonfly, Stingray, Scorpion, Cobra: ghid InkMachines — mașini suedeze și piese de schimb (Dragonfly, Scorpion, Stingray, Cobra)Întreținerea mașinii de tatuat: piesele de schimb esențiale

Guide & full description

Complete guide: Inkmachines nr. 118 - Swash Assy - 1pcs

The swash plate assembly (swash assy) is the original Ink Machines replacement part no. 118 for the Scorpion X1 rotary machine. It is the internal mechanism that converts the motor's rotation into the linear up-and-down motion of the needle bar — essentially the machine's kinematic heart: without it, the motor would spin but the needle wouldn't move. It is intended for artists and technicians who maintain or repair a Scorpion X1 machine and want to restore consistent stroke and quiet operation.

How to use

First check compatibility: this part (no. 118) is for the Scorpion X1. For the X2 model, use the dedicated assembly (no. 218) — they are not interchangeable.
Turn off and disconnect the machine, then disassemble the internal mechanism to access the existing swash assembly. For this operation you need the precision tool kit (no. 90).
Use the snap ring pliers (no. 55) to unfasten and remove the part from the motor shaft.
Caution with the Swash pin: do not open it with the pliers more than strictly necessary to remove it from the shaft — it can stretch and no longer grip the motor shaft correctly.
Mount the new swash assembly onto the motor shaft with precise alignment.
Reconnect the needle bar via the needlebar pin (no. 06) and check freedom of movement.
Lubricate the contact surface with a drop of synthetic tattoo machine oil (e.g., Inkmachines oil no. 56).
Test the machine at low speed before an actual session to confirm consistent stroke and tick-free operation.

Tips from us

Lubricate the swash surface regularly — one drop of oil each session reduces metal-on-metal wear and extends the part's lifespan.
If you predominantly work with large needle groupings, the force on the swash is higher and the part wears faster; keep a spare part on hand.
Do not force or excessively open the Swash pin during disassembly — a small deformation compromises the grip on the motor shaft.
If you lack experience with the internal mechanics of rotary machines, leave the replacement to a technician — incorrect installation can damage the motor.
Periodically inspect the contact surfaces: visible wear, mechanical play in the needle bar, or ticking at low speeds are signs that the part is nearing the end of its life.

Warning: This is a precision internal part, not a consumable. During disassembly, do not open the Swash pin more than strictly necessary — it can stretch and no longer grip the motor shaft correctly. Replacement requires full disassembly of the mechanism and reinstallation with exact alignment (using the precision tool kit no. 90); assembly errors can damage the motor or other components. This is not a beginner-level operation.

Frequently asked questions

Does it fit any Scorpion machine?▾

No. This part (no. 118) is for the Scorpion X1. The X2 model uses its own swash assembly (no. 218), with different geometry — they are not interchangeable. Check your machine model before ordering.

How do I know when the swash assy needs replacement?▾

Typical signs are: inconsistent needle stroke, mechanical play in the needle bar, ticking at low speeds, vibrations that don't disappear after changing other parts, and visible surface wear on inspection. On older rotary machines, a worn swash is often the main cause of performance drop.

Does the part require lubrication?▾

Yes. The swash plate is one of the main lubrication points of the Scorpion machine. One drop of synthetic oil (e.g., Inkmachines oil no. 56) on the contact surface each session reduces wear and extends lifespan. Without lubrication, metal-on-metal wear accelerates.

Can I replace it myself?▾

It is possible, but it is recommended only if you have experience with tattoo machine mechanics. It requires full disassembly of the internal mechanism, removal of the motor shaft, and reinstallation with precise alignment using the precision tool kit (no. 90). Incorrect installation can damage the motor.

What does the swash plate actually do?▾

It converts the motor's rotation into the linear up-and-down motion of the needle. The plate is mounted at an angle on the motor shaft and, through oscillation, transfers the motion to the needle bar via the needlebar pin (no. 06). Without it, the motor would spin but the needle wouldn't move.

How does it relate to the needle stroke?▾

The fixed 3.7 mm stroke of the Scorpion machine is directly determined by the tilt angle of the swash plate. Unlike machines with interchangeable cams (e.g., Inkjecta), the Scorpion has a fixed stroke, given by this plate.

Product description

Inkmachines nr. 118 - Swash Assy Use No. 55 - Circlip pliers to remove this part Hint! Be careful not to open the Swash pin with the Circlip pliers more than you need to remove it from the motor shaft. It can stretch so it wont clamp the motor shaft properly. Inkmachines Part No. 118 — Swash Assy is the original swash plate assembly for the Scorpion X1 machine, the central mechanism converting the motor's rotary motion into the needle bar's linear (up-down) movement. The swash plate (oscillating plate) is the kinematic heart of any rotary tattoo machine — without it, the motor would rotate but the needle would not move. Operating principle: a plate mounted at an angle on the rotating motor shaft moves with nutating motion, and the needle bar, connected through the needlebar pin (part no. 06), follows this movement on the vertical axis. The Scorpion's 3.7mm stroke is determined by the swash plate's tilt angle. The assembly includes the oscillating plate and motor shaft mounting elements. Manufactured from high-precision materials with tight tolerances, the swash assembly ensures smooth and consistent rotary-to-linear motion conversion. Swash plate wear is one of the most critical forms of wear on rotary machines: it generates mechanical play, stroke inconsistencies, and vibrations. The 45.00EUR price reflects the manufacturing complexity and critical importance of the part. Compatible with Scorpion X1. The Scorpion X1 swash plate produces a fixed 3.7mm stroke — unlike machines with interchangeable cams (Inkjecta, FK Irons) that allow stroke modification. This fixed stroke is optimized by Inkmachines for maximum versatility: long enough for efficient color packing yet short enough for precise lining control. The swash plate contact surfaces are mirror-finished for minimal friction. A new swash assembly transforms a worn Scorpion machine into an instrument that performs like new, restoring stroke consistency, operational quietness, and energy efficiency. Frequently Asked Questions
